Hub

@devframes/hub orchestrates many devtools sharing a UI: a dock registry, terminal aggregation, message/toast queue, and command palette. It ships no UI — each framework kit provides its own atop the hub's RPC + shared-state protocol.

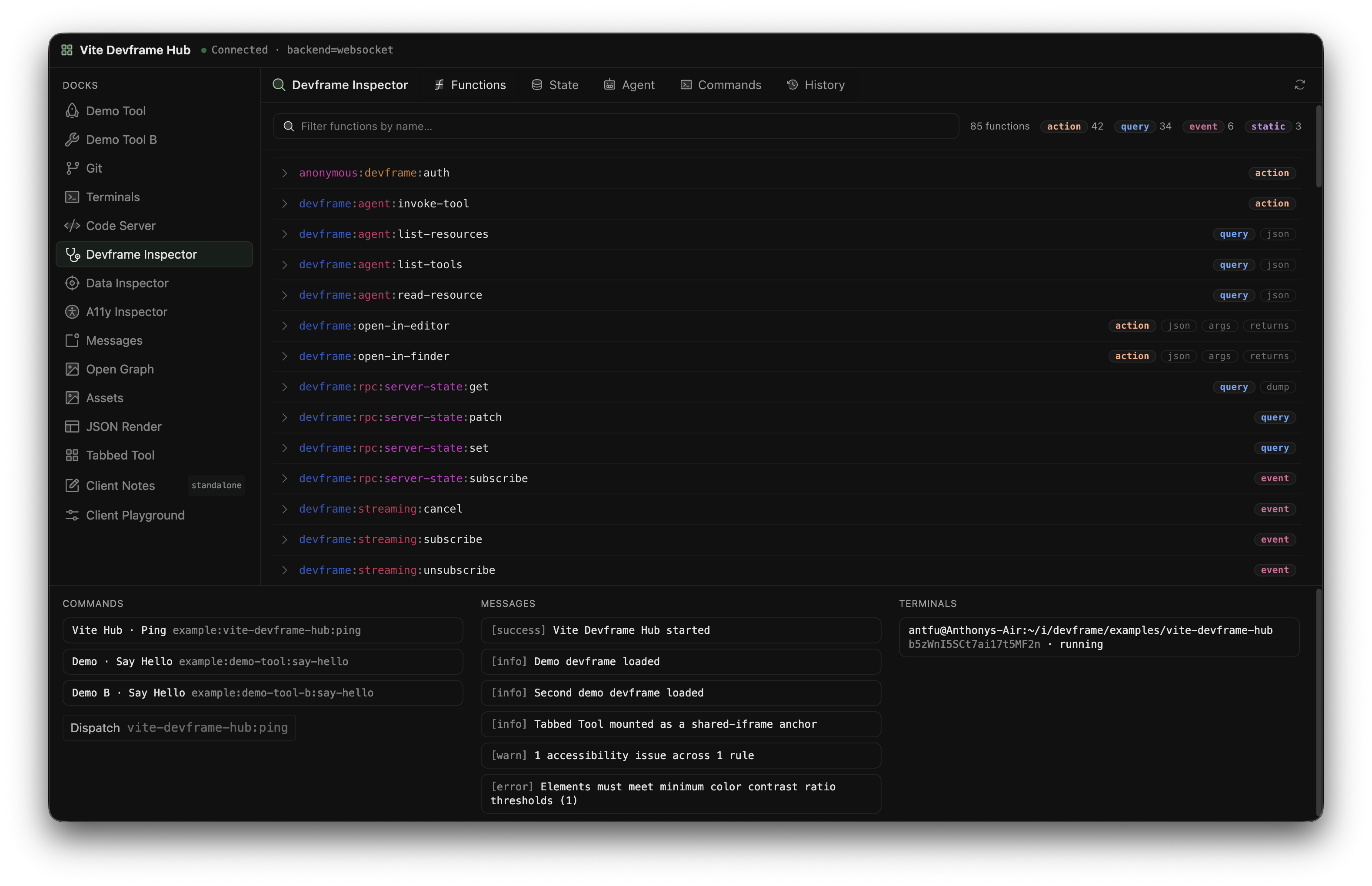

Orchestrating multiple devtools (from A Playground)

What the hub adds

DevframeHubContext adds four subsystems to DevframeNodeContext:

Subsystem	Surface	Purpose
ctx.docks	register / update / values / activate	Dock entries (iframes, launchers, custom-render) and groups; activate(dockId, params?) sets the active dock (Cross-iframe dock activation).
ctx.terminals	register / startChildProcess	Aggregate terminal sessions, streaming output (Terminals).
ctx.messages	add / update / remove / clear	Server-side toast/notification queue (FIFO, capped at 1000).
ctx.commands	register / execute / list	Hierarchical command palette with keybindings and when clauses.

Data-driven UI panels are an opt-in JSON-Render integration (a json-render dock type).

Built-in RPC

Every hub context auto-registers these client-callable functions:

• hub:commands:execute — invoke a server command by id.
• hub:docks:activate — switch the active dock (Cross-iframe dock activation).
• hub:messages:add / update / remove / clear — write the messages feed.
• hub:terminals:write / resize — drive a PTY session by id.

Host-specific capabilities (open in editor, reveal in finder) ship as kit-registered functions.

Commands as agent tools

A server command with an agent field (agent surface) becomes a ctx.agent MCP tool:

ctx.commands.register({
  id: 'app:build',
  title: 'Run build',
  agent: {
    description: 'Run the production build. Call after config or dependency changes to verify the app still builds.',
    args: [v.object({ configFile: v.optional(v.string()) })],
  },
  handler: (opts?: { configFile?: string }) => runBuild(opts),
})

args takes positional Standard Schema schemas (a single v.object(...) unwraps into the input); omit for zero-arg. safety defaults to 'action'; when clauses are unenforced for agent calls.

Cross-iframe dock activation

A mounted devframe's iframe uses hub:docks:activate to switch the active dock.

// From inside a mounted devframe's iframe (its own RPC client):
await rpc.call('hub:docks:activate', {
  dockId: 'devframes_plugin_terminals',
  params: { sessionId }, // opaque bag the target dock interprets
})

It mirrors into the devframe:docks:active shared-state slot; the terminals dock reads params.sessionId, unknown ids no-op (DF8107). Server-side: ctx.docks.activate(dockId, params?).

Process-control launchers

A type: 'launcher' dock entry is a one-click action tile. Three optional launcher fields make it a live process controller:

Field	Purpose
command	Bound command id; out-of-process viewers dispatch via hub:commands:execute (register a handler via ctx.commands).
terminalSessionId	Tracked session id; a "view in terminal" action calls hub:docks:activate with the terminals dock id and { sessionId }.
digest	Latest progress line, shown inline; patch via docks.update().

onLaunch lets a same-process host invoke directly; provide command, onLaunch, or both.

ctx.commands.register({ id: 'app:build', title: 'Run build', handler: runBuild })

const launcher = ctx.docks.register({
  type: 'launcher',
  id: 'app:build',
  title: 'Build',
  icon: 'ph:hammer-duotone',
  launcher: { title: 'Run build', command: 'app:build', status: 'idle' },
})

async function runBuild() {
  const session = await ctx.terminals.startChildProcess(
    { command: 'vite', args: ['build'] },
    { id: 'app:build-session', title: 'vite build' },
  )
  launcher.update({ launcher: { title: 'Run build', command: 'app:build', status: 'loading', terminalSessionId: session.id } })

  // A child-process session keeps its `status` live: `running` → `stopped` on a
  // clean exit, `error` on a non-zero exit or spawn failure. Map it onto the
  // launcher and read the exit code from getResult().
  const { exitCode } = await session.getResult()
  launcher.update({ launcher: {
    title: 'Run build',
    command: 'app:build',
    terminalSessionId: session.id,
    status: exitCode === 0 ? 'success' : 'error',
    error: exitCode === 0 ? undefined : `vite build exited ${exitCode}`,
  } })
}

Mounting a devframe into a hub

ctx.install(def) registers a DevframeDefinition as a dock and runs its setup(ctx) — the imperative counterpart to initHub's devframes list.

import { createHubContext } from '@devframes/hub/node'

const ctx = await createHubContext({ cwd, host, mode: 'dev' })
await ctx.install(myDevframe)

Framework kits wrap this in a plugin shell (e.g. @vitejs/devtools-kit's createPluginFromDevframe).

Connecting embedded SPAs

A mounted SPA loads at /__<id>/ and calls connectDevframe(), which fetches ./__connection.json — served by the host's mountConnectionMeta(base):

const host: DevframeHost = {
  mountStatic(base, distDir) { /* serve files */ },
  mountConnectionMeta(base) {
    // serve `${base}__connection.json` → { backend: 'websocket', websocket: port }
  },
  resolveOrigin() { /* … */ },
  getStorageDir(scope) {
    // workspace = committable, team-shared; project = per-checkout; global = per-user
    if (scope === 'workspace')
      return join(cwd, '.devframe')
    if (scope === 'project')
      return join(cwd, 'node_modules/.my-hub')
    return join(homedir(), '.my-hub')
  },
}

Omitting mountConnectionMeta (with servable clientAssets) triggers DF8106 and falls back to same-origin inheritance.

Bundled hosts (Next.js)

Load node-side plugin packages via dynamic import() with webpackIgnore/turbopackIgnore comments:

const pkgs = ['@devframes/plugin-git', '@devframes/plugin-terminals']
const defs = await Promise.all(
  pkgs.map(p => import(/* webpackIgnore: true */ /* turbopackIgnore: true */ p)),
  // Each package's default export is its `create<X>Devframe` factory, not a
  // pre-built instance — call it to get one.
).then(mods => mods.map(m => m.default()))

for (const def of defs)
  await ctx.install(def)

SPAs serve at /__<id>/ with relative assets; set skipTrailingSlashRedirect:

// next.config.mjs
export default { skipTrailingSlashRedirect: true }

Duplicate devframes

When a devframe shares an already-mounted id, duplicationStrategy decides:

Strategy	Behavior
'warn' (default)	Keep the first, drop the later, emit DF8105.
'silent'	Drop the later one without warning.
'throw'	Throw DF8105.
'duplicate'	Every instance coexists under a disambiguated dock id (my-tool, my-tool-2, …).

defineDevframe({
  id: 'my-tool',
  // …
  duplicationStrategy: 'duplicate',
})

Grouping dock entries

Related dock entries collapse under one dock-bar button (a type: 'group' entry); an entry whose groupId matches the group's id joins it.

ctx.docks.register({
  type: 'group',
  id: 'nuxt',
  title: 'Nuxt',
  icon: 'logos:nuxt-icon',
  category: 'framework',
  defaultChildId: 'nuxt:overview', // optional; popover-only when omitted
})

ctx.docks.register({
  type: 'iframe',
  id: 'nuxt:overview',
  title: 'Overview',
  icon: 'ph:gauge-duotone',
  url: '/__nuxt-overview/',
  groupId: 'nuxt', // joins the group above
})

Group and members stay independent top-level entries in devframe:docks; defaultChildId opens on activation. Grouping affects the dock bar, not iframes — to share one soft-navigated iframe, give docks a shared frameId and mark the anchor with subTabs (Shared-iframe soft navigation).

The dual role of category

category (ordered by DEFAULT_CATEGORIES_ORDER, default 'default') sets an ungrouped entry's outer dock-bar bucket. A grouped entry takes its outer bucket from the group's category, and its own category becomes an in-group sub-category; a member whose groupId never resolves renders top-level under its own category.

Known categories

DEFAULT_CATEGORIES_ORDER (from @devframes/hub, /node, /client, /constants) names the default buckets:

Category	Weight	Typical use
framework	-100	Framework internals.
default	0	Uncategorized.
app	100	App tools.
ui	150	Components, styling.
data	250	State, storage, queries.
web	300	Network, platform, a11y.
performance	350	Profiling, metrics.
advanced	400	Power-user tools.
docs	500	Documentation.
~builtin	1000	Built-in views; always last.

Kits can interleave category ids or override weights; an unknown category sorts as 0.

The protocol — what the UI sees

A hub-aware UI imports no hub classes; it reads these shared-state keys and RPC methods:

Channel	Type	What it carries
devframe:docks shared state	DevframeDockEntry[]	Every registered dock entry.
devframe:commands shared state	DevframeServerCommandEntry[]	Serializable command list (handlers stripped).
devframe:user-settings shared state	DevframeDocksUserSettings	Persisted per-workspace hub settings.
devframe:docks:active shared state	DevframeDocksActiveState	Most recent dock activation request.
hub:commands:execute RPC	(id, ...args) => unknown	Server-side command dispatch.
hub:docks:activate RPC	({ dockId, params? }) => void	Switch the active dock.

Broadcast notifications (devframe:docks:activate, devframe:terminals:updated, devframe:messages:updated) arrive via rpc.client.register(...); the client host registers devframe:docks:activate for you (Events Reference).

Running plugin code in the host page

The hub ships a headless browser runtime, createDevframeClientHost() (@devframes/hub/client): booted in the host page, it assembles the client context and imports each dock entry's client script (Client Scripts & Client Context).

Example

Two minimal hubs mount every built-in plugin behind an icon dock, plus a "Tabbed Tool" demonstrating shared-iframe soft navigation:

• examples/hub-vite/ — a ~120-line Vite host with a vanilla DOM UI.
• examples/hub-next/ — the same, from a Next.js App Router app.

Diagnostics

Hub-side diagnostic codes live in the DF8xxx range — see the error reference.
